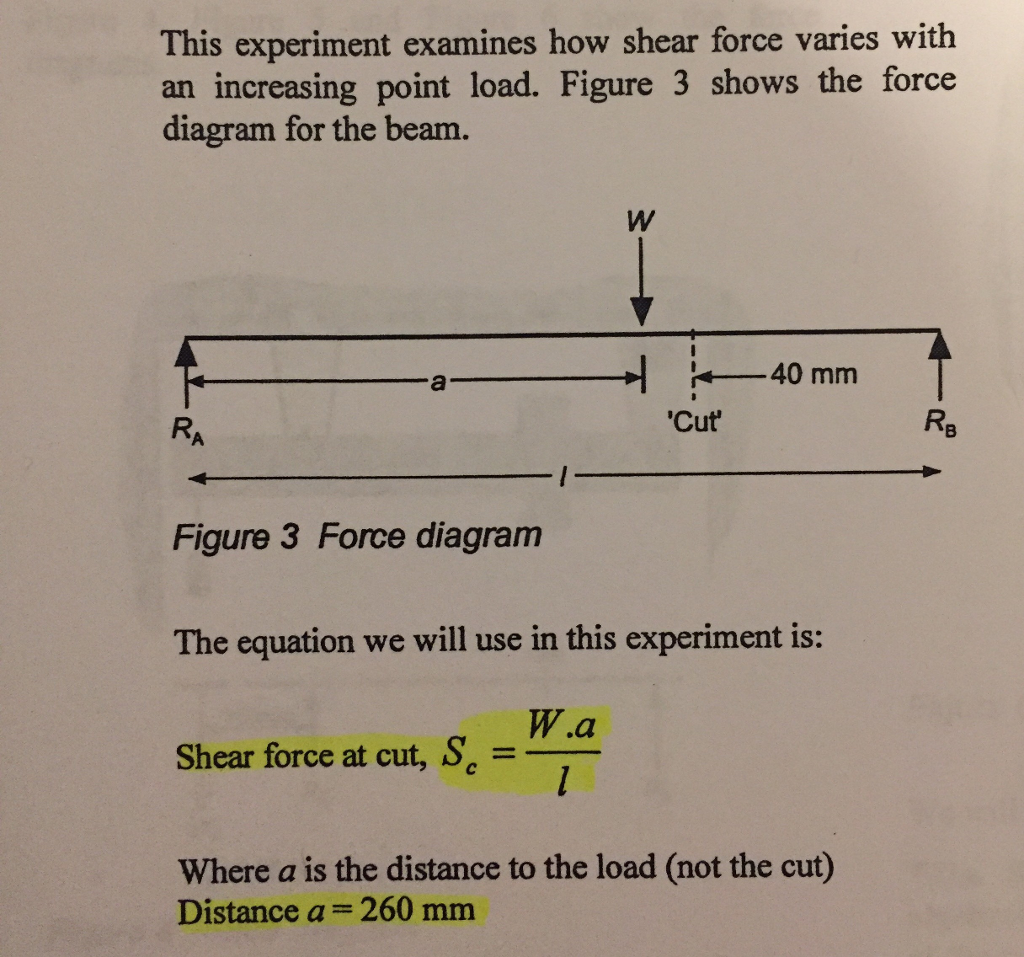

Shear force variaton with an increasing

The resultant of the loads and reaction acting on the left of AA is F vertically upwards, and since the whole beam is in equilibrium, the resultant force to the right of AA must be F downwards. These forces are internal and cannot easily be seen. Bending moments are considered positive when the moment on the left portion is clockwise and on the right anticlockwise.

Relationship between shear force and bending moment

An electronic load cell measures the force, and connects to a Digital Force Display. It is simply supported at two points where the reactions are. If both ends are fixed in this way the reactions are not statically determinate. During this experiment a series of forces with increasing magnitude will be applied on beam and for each beam shear stress value will be calculated. Related products. In practice, it is not usually possible to obtain perfect fixing and the fixing moment applied will be related to the angular movement of the support. First step is to setup the apparatus which involve starting the computer software according to the guide provided and setting it to virtual experiment mode Second step is to select the variable hanger load which is available in the property selection box Third step involves the placement of load at the required distance from one pivot point of beam Data generated as the result of force application is recorded by the software automatically Third step is repeated for the different loads and for each load software record data automatically in its memory Graphs were prepared using the data obtain from the experiment Results Table 3 Shear stress calculations Mass g. Bending Moments In a similar manner it can be seen that if the Bending moments BM of the forces to the left of AA are clockwise, then the bending moment of the forces to the right of AA must be anticlockwise. The element must be in equilibrium under the action of these forces and couples and the following equations can be obtained:- Taking Moments about C:. In the following diagram is the length of a small slice of a loaded beam at a distance x from the origin O Let the shearing force at the section x be F and at. A comprehensive instruction manual, giving full details on apparatus assembly and operation as well as example results. Bending Moments are rotational forces within the beam that cause bending. A Built-in or encastre' support is frequently met. Free body diagram of this apparatus has been shown below.

The effect is to fix the direction of the beam at the support. It is very important to following the sequence of these steps as this experiment involve electronic system which is integrated with software for shear force application and calculation.

shear force in a beam

Special load hangers are provided that fit over the beams. In order to do this the support must exert a "fixing" moment M and a reaction R on the beam. This experiment brings these internal forces from inside the beam to outside the beam so that students can visually see the beam deflecting and shear forces acting.

Shear force apparatus

A negative bending moment is termed hogging. Types Of Support A Simple or free support is one on which the beam is rested and which exerts a reaction on the beam. The diagram shows a beam carrying loads. Special load hangers are provided that fit over the beams. Other cases which occur are considered to be exceptions. In practice, it is not usually possible to obtain perfect fixing and the fixing moment applied will be related to the angular movement of the support. A full set of slotted, calibrated weights is included. If w is the mean rate of loading of the length , then the total load is , acting approximately exactly if uniformly distributed through the centre C. Figure 6 Shear stress apparatus free body diagram shear stress free body diagram As this experiment is about calculating or observing the shear for on beam due to the externally applied forces on beam so following the formula for this beam needed to calculate the shear force produce in beam by the external force. It is normal to assume that the reaction acts at a point, although it may in fact act act over a short length of beam.

First step is to setup the apparatus which involve starting the computer software according to the guide provided and setting it to virtual experiment mode Second step is to select the variable hanger load which is available in the property selection box Third step involves the placement of load at the required distance from one pivot point of beam Data generated as the result of force application is recorded by the software automatically Third step is repeated for the different loads and for each load software record data automatically in its memory Graphs were prepared using the data obtain from the experiment Results Table 3 Shear stress calculations Mass g.

All necessary assembly and operational tools are provided.

Bending moment experiment apparatus

In the following diagram is the length of a small slice of a loaded beam at a distance x from the origin O Let the shearing force at the section x be F and at. A comprehensive instruction manual, giving full details on apparatus assembly and operation as well as example results. All necessary assembly and operational tools are provided. Types Of Support A Simple or free support is one on which the beam is rested and which exerts a reaction on the beam. Introduction to experiment This experiment is about understanding the effect of change in force magnitude on shear stresses produce in beam due to that force. Types Of Load A beam is normally horizontal and the loads vertical. In order to do this the support must exert a "fixing" moment M and a reaction R on the beam. Bending Moment at AA is defined as the algebraic sum of the moments about the section of all forces acting on either side of the section. A Concentrated load is one which can be considered to act at a point, although in practice it must be distributed over a small area. Assume that the beam is divided into two parts by a section XX. These forces are internal and cannot easily be seen. The force transducer is supplied with a connection lead to connect its output directly into the display unit. Special load hangers are provided that fit over the beams.

A beam which is fixed at one end in this way is called a Cantilever. In practice, it is not usually possible to obtain perfect fixing and the fixing moment applied will be related to the angular movement of the support. A Distributed load is one which is spread in some manner over the length, or a significant length, of the beam.

The force transducer is supplied with a connection lead to connect its output directly into the display unit.

shear force and bending moment

The load hangers can be positioned accurately along each beams length by using the graduated scales attached to the side of the beams.

Rated 7/10 based on 86 review
Download

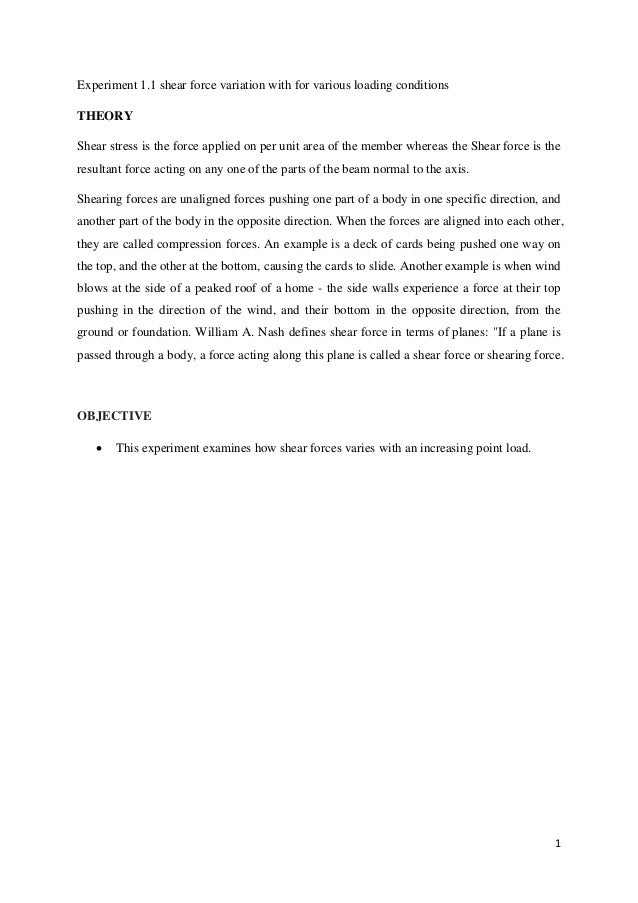

LAB REPORT SHEAR FORCE IN A BEAM
